Best Off-Road Heim Joints

‍Are you an off-road enthusiast looking to upgrade your rig for rugged adventures? Then you'll need to find the best Heim joints for optimal performance.

The best off-road Heim joints include the following:

1. NOVINO 3/4" Heim Joint Rod End Kit
2. YIFUOK Heim Joint Rod End Kit
3. Joogto 3/4” Rod End Heim Joint Kit
4. Lifetime LED Heim Joint Kit
5. GaiRen 3/4'' Heim Joints Rod End Kit

In this guide, we'll explore the top 5 off-road heim joints on the market, so you can hit the trails with confidence and take on any obstacle that comes your way. Each recommended product has been personally tested and graded on performance and durability.

‍5 Best Offroad Heim Joints: Your Ultimate Guide for Rugged Adventures

Off-road enthusiasts understand the importance of durable and reliable components when tackling the most challenging terrains. One such crucial component is the Heim joint, an essential part of your vehicle's suspension and steering systems.

Heim joints, also known as spherical rod ends, provide smooth articulation and full range of motion for your off-road vehicle's suspension, ensuring a safer and more enjoyable experience.

Choosing the right one can make all the difference in performance, durability, and overall vehicle stability. Quality materials, such as high-grade steel or alloy, and adequate manufacturing processes contribute significantly to the joint's strength and long service life.

With countless options available, it's critical to pay attention to the joint's load ratings, level of misalignment it can handle, and any added features that may contribute to its adaptability and ease of use. We’ve listed what we believe to be the best options below.

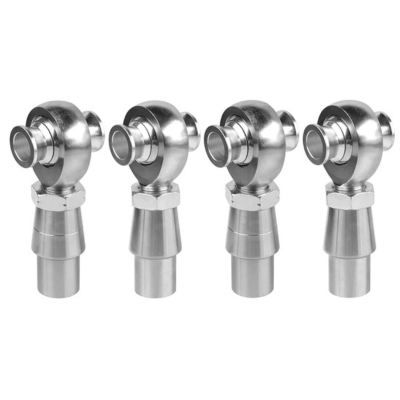

1. NOVINO 3/4" Heim Joint Rod End Kit

We recommend the NOVINO 3/4" Heim Joint Rod End Kit for durable and easy-to-install off-road performance. This is the number one heim joint kit for beginners too.

The kit's exterior components have been chrome plated to increase load capacity. These Heim joints can withstand a whopping 28,081 lbs. We also appreciated how easy it was to install the heim joints.

The kit is compatible with both MiG and TIG welding and includes additional hardware for easy mating installations. This system saved us time and provided a reliable connection for off-road adventures.

However, it's important to note that there have been some reported discrepancies with the product packaging. Some kits arrived with only right-hand threads or without rod ends, leading to issues during installation.

Pros

• Ideal for heavy-duty applications
• Easy to install with MiG and TIG welding options
• Versatile applications in steering, suspension, traction bars, and more
• Includes tube adapters and misalignment spacers

Cons

• Limited to 1 1/4" OD x .120" wall x 1.01" ID tube sizes

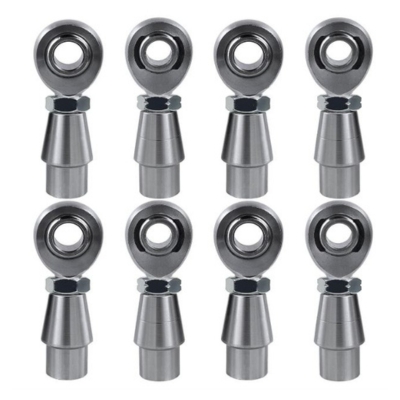

2. YIFUOK Heim Joint Rod End Kit

We recommend the YIFUOK Heim Joint Rod End Kit for its superior strength and durability. We recently installed this kit on our off-road rig and were amazed by its heavy-duty construction.

The heat treatment and hard chrome plating ensured a longer-lasting finish we truly appreciated. Another notable feature is the Teflon-impregnated nylon race that enhances durability.

These joints are perfect for rock crawlers, Jeeps, and other off-road projects. The massive 1.25" shaft with 12 TPI and the 1" ball bore design make these incredibly sturdy and long-lasting.

Safety washers, jam nuts, steering joints, and link joints are included. You’ll need to sort through the packaging, which was a major downside for us but the performance makes up for it. Helpful instructions for assembly are also included.

Pros

• Teflon-impregnated nylon race for added longevity
• Comes with a complete set, including spacers, jam nuts, and tube adapters
• Heavy-duty with 28,081 pounds in load capacity

Cons

• Thread engagement could be better

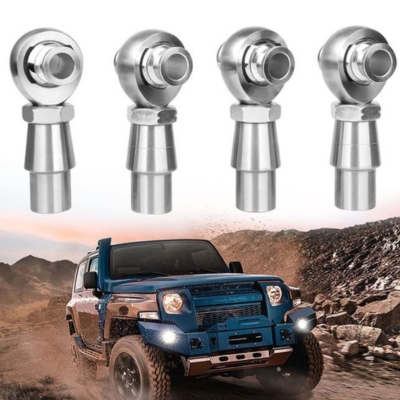

3. Joogto 3/4” Rod End Heim Joint Kit

The Joogto 3/4” Rod End Heim Joint Kit is a reliable choice for off-road enthusiasts looking for heavy-duty performance and durability. After using this kit, I found it to be a solid option for off-road applications.

One of the standout features of this Heim Joint kit is its 28,000-pound static load rating. We put it through some demanding off-road scenarios, and the heavy-duty performance it offered didn't disappoint. We also appreciated the 1-piece steel design that has been heat-treated to provide additional durability.

However, there were some aspects of this kit we found less impressive. First, the misalignment spacers seemed of lower quality than we would have liked. But we still love what this kit can offer, and this was a minor concern.

Pros

• Good combination of heavy-duty performance and durability
• Includes jam nut spacers and tube adapter
• 28,000-pound static load rating for heavy-duty use
• Heat-treated 1-piece steel design

Cons

• Misalignment spacers may be of lower quality

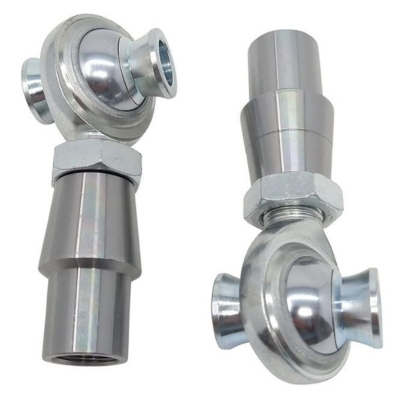

4. Lifetime LED Heim Joint Kit

This Lifetime LED Heim Joint Kit is recommended for budget-conscious off-roaders who need reliable Heim joints for low-load applications. These Heim joints provide above-average performance and durability.

This kit could be a suitable option for those tackling light-duty off-road projects or needing steering joint replacements. The included tube adapter fits snugly in any 1" ID tube, ensuring compatibility with our application.

Despite being an economy version with a lower load rating, the kit benefits from zinc-coated misalignment spacers and jam nuts, which provide extra durability. We appreciated the focus on quality as we assembled the components.

Pros

• Complete kit with both hand threads
• Zinc-coated misalignment spacers and jam nuts for durability
• Tube adapter fits 1.00" ID tube perfectly

Cons

• Not suitable for high-load applications

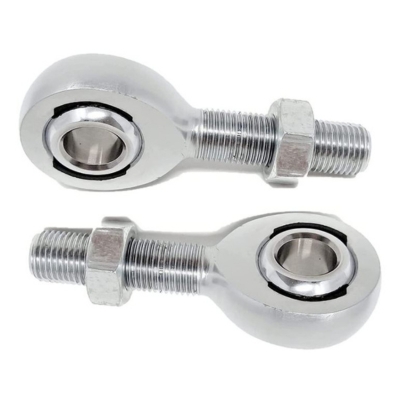

5. GaiRen Heim Joints

We recommend the GaiRen Heim Joints to any off-road drivers searching for an affordable option. After testing them, the durability blew me away at this price point.

Thanks to the kit's well-built components and high-quality materials, we experienced excellent performance, ensuring our off-road adventure was smooth and hassle-free.

Installing the kit was a breeze. It saved our time and effort in modifying and adjusting the joints. The C1045 steel body and 52100-bearing steel ball ensured strength and durability.

We noticed that the .065 wall bungs might require some adjustment to fit flawlessly. Also, the product is slightly heavier than some alternatives, but this did not hinder its functionality in any way. But still, these Heim joints are worth using for your off-roading adventures.

Pros

• High-quality materials
• Easy to install
• Comes with right & left-hand threads

Cons

• Slightly heavier than some alternatives

How Long Do Heim Joints Last?

When it comes to the longevity of Heim joints, it's not a one-size-fits-all situation so you want to be on the same page with your vehicle by installing the best equipment.

With proper maintenance, high-quality Heim joints should last at least 5-10 years or 50,000-100,000 miles. However, several factors can influence their durability:

• Materials: The type of material used in the joint can greatly affect its longevity. For instance, chromoly steel is known for its strength and durability, while aluminum is lightweight but may have a shorter lifespan.
• Lubrication: Heim joints need to be lubricated regularly to ensure smooth, friction-free movement. Using the correct type of grease and maintaining a proper lubrication schedule will prolong the life of the joint.
• Load Capacity: The more weight the joint needs to support, the faster it will wear out. Ensure that you choose a joint with the appropriate load capacity for your vehicle and intended off-road activities.

Here are some general guidelines to help identify when it's time to replace your Heim joints:

• Excessive play or wobble in the joint
• Visible signs of wear on the ball or race
• Rust or corrosion
• Difficulty moving the joint

It's essential to inspect your Heim joints regularly and address any issues as they arise, ensuring they perform at their best and keep us safe during our off-road adventures.

Preventative maintenance goes a long way in maximizing the life of these essential components.

What To Consider When Shopping For Off-Road Heim Joints

When shopping for these components, there are several factors you should consider to ensure you get the best quality product for your needs.

Material Quality

When choosing the best off-road heim joints, consider the material quality. Look for joints made from high-strength materials such as chromoly or stainless steel. These materials ensure durability and longevity.

Load Capacity

It's crucial to assess the load capacity of the heim joint. Higher load capacity means it's suitable for heavy-duty off-road applications. Always check that the capacity matches your vehicle's requirements.

Thread Size

Thread size is an essential factor when selecting heim joints. Common sizes include 3/8-inch, 5/8-inch, and 3/4-inch. We recommend measuring the existing threads on your off-road vehicle before purchasing.

Cost vs. Quality

While it's tempting to go for the cheapest option, we advise not to compromise on quality. Remember, investing in quality heim joints ensures reliable performance and peace of mind during off-road adventures.

How Do I Know If My Heim Joints Are Bad?

Sometimes we might be driving our off-road vehicles and notice something isn't quite right. One culprit could be a failing Heim joint. Let's look at signs indicating that our Heim joint might be going bad.

Excessive play or wobbling is a clear indication that there's an issue with our joint. When we grab the joint and move it around, it should feel firm and secure. If we feel any play, it's time to replace the joint.

Another sign that our Heim joint is bad is unusual noise. We might notice a clunking or knocking sound when we're driving through rough terrain or over obstacles. This noise could indicate that our joint is worn out and needs to be replaced.

If we see visible corrosion or rust on the joint, this could be a sign that the joint is on its way out. Due to moisture and dirt exposure, off-road Heim joints will eventually corrode, degrading their performance.

Finally, suppose we've been using our Heim joint for an extended period and put a lot of miles on our vehicle. In that case, we should consider replacing it as part of regular maintenance, even if we haven't noticed any of the above signs.

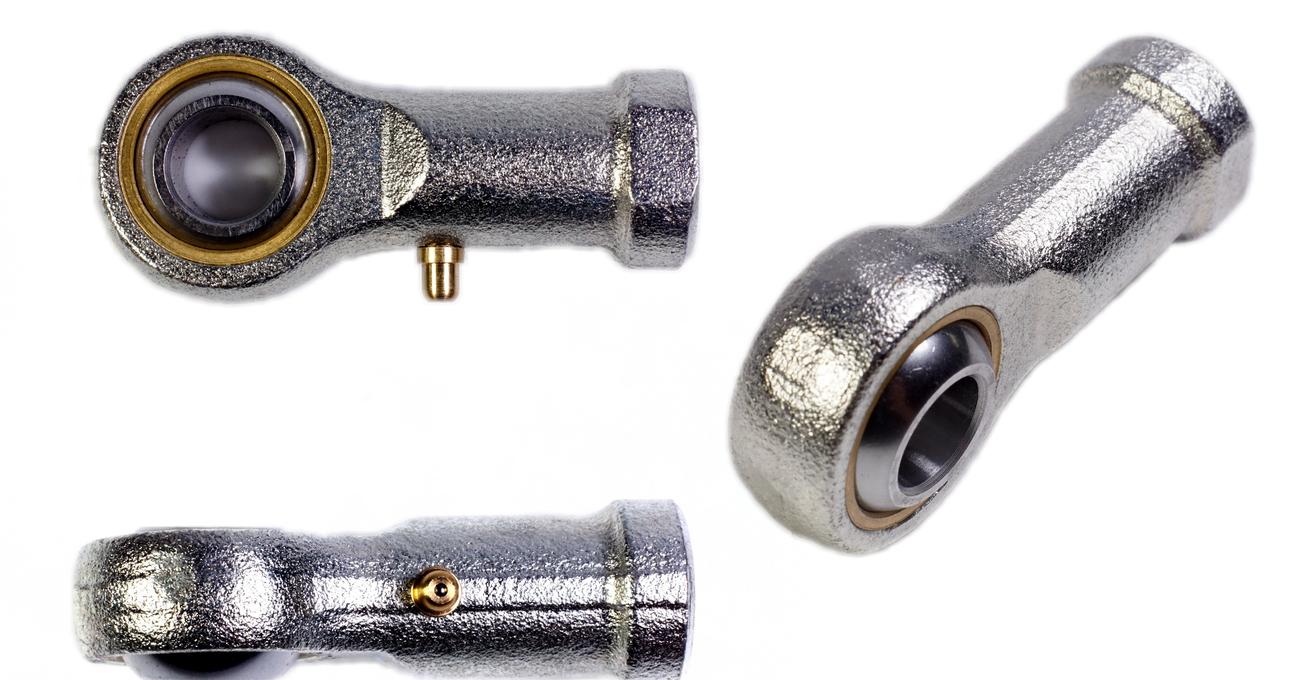

How Strong Is a Heim Joint?

Heim joints, also known as rod ends, are incredibly sturdy components in off-road applications. We've done some research and found out just how strong they can be.

First, it's important to note that Heim joints come in a variety of materials, such as steel, aluminum, or even heavy-duty plastics. Each material has its own specific strength characteristics.

• Steel Heim Joints: They are typically the strongest option available. They can handle heavy loads and are resistant to wear and tear. However, they can be more susceptible to rust, so it's essential to maintain and protect them properly.
• Aluminum Heim Joints: They are lighter than steel but may not offer the same level of strength. They are still suitable for many off-road applications, provided that the vehicle does not exceed the materials' load capacity. Corrosion resistance is one of their strong points.
• Plastic Heim Joints: They are rare, not used often, and tend to be less robust. They are mainly used in applications where strength is not a primary concern.

Additionally, the strength of a Heim joint depends on its size and construction quality. On average, a standard Heim joint with a 3/4" bore size can withstand between 28,000 to 30,000 pounds of load. However, heavy-duty or custom-made Heim joints can support even higher loads.
